Description
Macstroc Hinged Pipe cutters from 1″ -12″ Download Catalogue

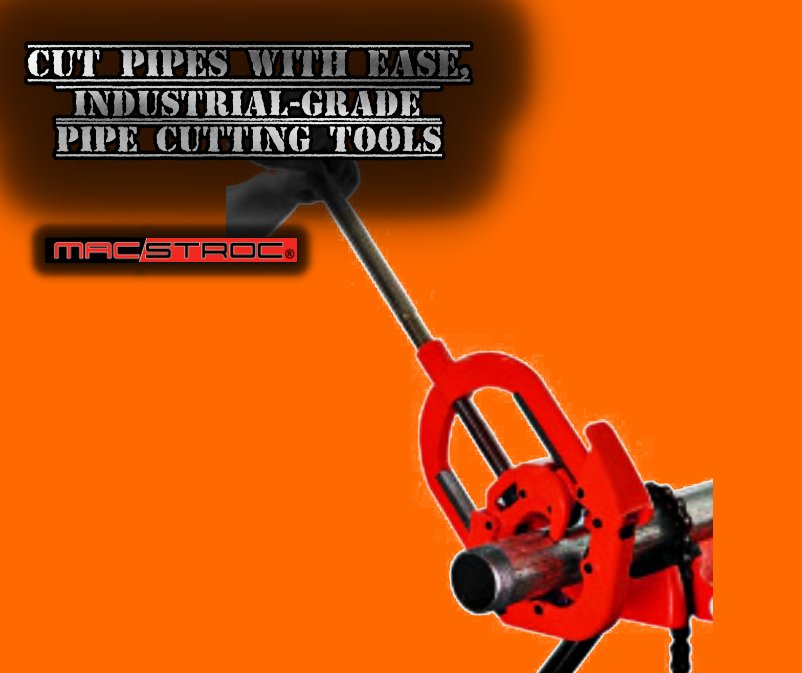

Macstroc Hinged Pipe Cutter Series – Manual Spark-Free Cutting from 1″ to 12″
The Macstroc Hinged Pipe Cutter series offers robust, handheld pipe-cutting solutions for 1″ to 12″ (25 mm–300 mm) steel, heavy-wall steel, cast iron, and stainless steel pipes, tailored for constrained working environments. Designed with a four-blade hinge mechanism, each cutter requires only 90–110° of rotation, enabling swift and precise cuts in trench work, pipe racks, confined spaces, overhead reels, or noise-sensitive areas across the UAE—without generating sparks or excessive heat.
Available models include:
-
MHP12: 1–2½″ (25–63 mm), wall thickness up to 6 mm
-
MHP24: 2–4″ (50–100 mm), wall thickness up to 6 mm
-
MHP46: 4–6″ (100–150 mm), wall thickness 3–7 mm
-
MHP68: 6–8″ (150–200 mm), wall thickness 3.4–8.2 mm
-
MHP0812: 8–12″ (200–300 mm), wall thickness 3.4–8.2 mm
| CODE
PIPE CUTTER |
Ø PIPE DIA |
WALL THICKNESS
STEEL (MM) |
WALL THICKNESS
CAST-IRON (MM) |
WALL THICKNESS
SS (MM) |
N.W KGS |
CODE
CUTTING WHEEL |
| MHP12 | 1-2 1/2” 25-63mm |
2.77 – 6.02 | 3 – 6 | 3 – 6 | 3.3 | MHP12/W4 |
| MHP24 | 2-4” 50-100mm |
2.77 – 6.02 | 3 – 6 | 3 – 6 | 6.5 | MHP24/W4 |
| MHP46 | 4-6”
100-150mm |
3 – 7.11 | 3 – 6 | 3 – 6 | 9 | MHP46/W4 |
| MHP68 | 6-8”
150-200mm |
3.4 – 8.18 | 3.4 – 6 | 3.4 – 6 | 12 | MHP68/W4 |
| MHP0812 | 8-12”
200-300mm |
3.4-8.2 | NA | NA | 20.8 | MHP0812/W4 |
Key Benefits & Use Cases
-
Minimal Rotation & Fast Cut-Offs
With the hinged mechanism and four blades, only partial rotation is needed to complete the cut—perfect for tight spaces and quick operations on-site -
Cold, Spark-Free Operation
Ideal for use in flammable or sensitive zones—e.g., pipelines, chemical plants, hospitals, and industrial workshops—where sparks must be avoided -
Versatility Across Pipe Materials
Effectively cuts steel, heavy-wall steel, cast iron, and stainless steel with clean edges and minimal distortion -
Highly Portable & Durable
These compact manual cutters are easy to carry and use in remote or busy UAE sites—no electricity, hoses, or bulky equipment required. -
Wide Industry Applications
Commonly used in construction (Dubai, Abu Dhabi), pipeline maintenance (Sharjah, Fujairah), oil & gas, plumbing, HVAC, and utility projects throughout the UAE.The Macstroc Hinged Pipe Cutter series offers durable, operator-friendly manual cutters for 1″–12″ steel, heavy-wall steel, cast iron, and stainless pipes. With minimal rotation and spark-free operation, they are ideal for confined, noise-sensitive, or hazardous work environments in UAE industrial, pipeline, and construction sectors. The Macstroc Hinged Pipe Cutter series offers durable, operator-friendly manual cutters for 1″–12″ steel, heavy-wall steel, cast iron, and stainless pipes. With minimal rotation and spark-free operation, they are ideal for confined, noise-sensitive, or hazardous work environments in UAE industrial, pipeline, and construction sectors.
