Description

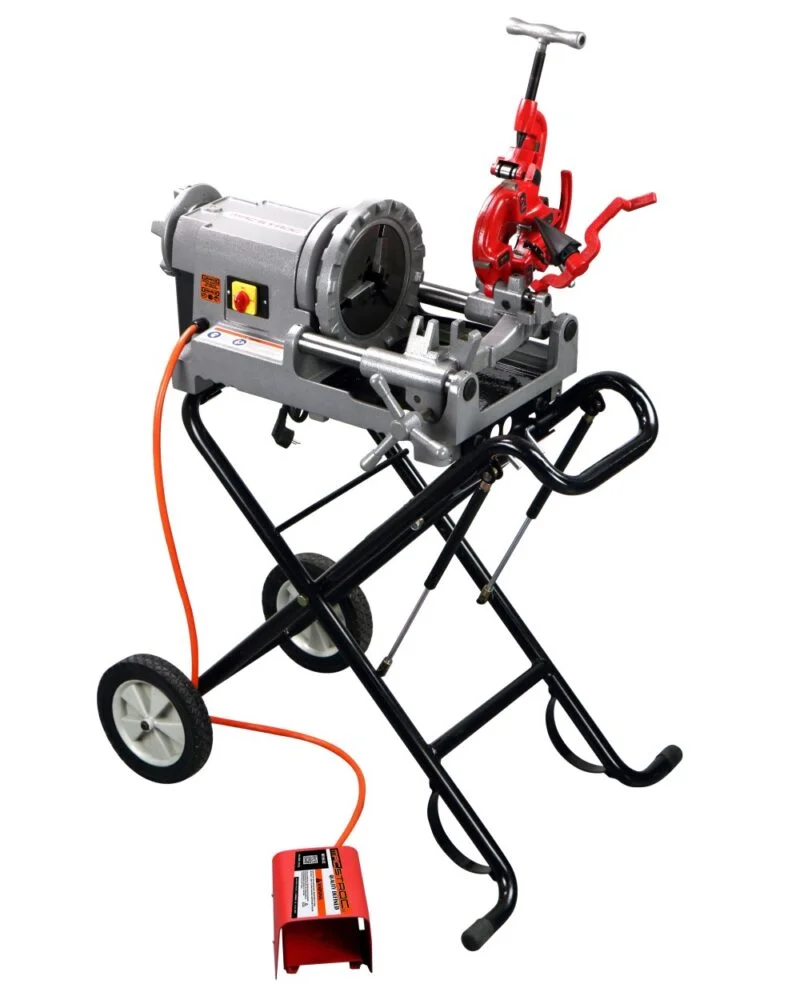

The Flare.2C pipe threading machine is a high-performance, heavy-duty solution built for professionals in the UAE plumbing, construction, and MEP industries. Designed for precision and durability, the Flare.2C effortlessly threads galvanized, stainless steel, and black steel pipes with speed and accuracy. Its robust motor, user-friendly controls, and stable frame make it ideal for demanding jobsites in Dubai, Abu Dhabi, Sharjah, and across the Emirates. Whether for commercial installations or industrial applications, Flare.2C ensures consistent results and long-term reliability, backed by excellent support and service in the UAE. The Flare.2C pipe threading machine features a robust 1500W (2HP) motor, delivering exceptional torque and efficiency for continuous heavy-duty operation. It is capable of threading pipe sizes ranging from 1/2 inch to 2 inches, (and 1/4″-3/8″with additional dies ) making it ideal for a wide range of applications in plumbing, construction, and industrial sectors. The machine comes with an automatic opening die head, a self-lubricating system, and a gear-driven mechanism that ensures smooth, accurate, and consistent threading. Designed for demanding environments, the Flare.2C is built to last and perform with precision across job sites in the UAE.
| PIPE THREADING CAPACITY | Pipe : 1/8″ – 2″ ( 3 mm – 50 mm) |
| BOLT THREADING CAPACITY | Bolt : 12 mm – 50 mm |
| MOTOR | 1500W universal, 50/60Hz |
| SWITCH | Heavy-duty rotary Forward/off/reverse and integral Foot Switch |
| SPINDLE SPEED | 38 RPM. |
| FRONT CHUCK | Hammer type with replaceable rocker action jaw inserts |
| REMARKS | Rear Centering Device: Cam action. |
| Oiling System: Through the die head, with integral oil reservoir | |
| Pump: Self—priming constant flow, gerotor pump. | |
| STANDARD SUPPLY | Model FLARE.2c Threading Machine. (110 or 220V) |
| Self-opening die head-SDH15A (BSPT or NPT) | |
| 1/2″-3/4″ universal HSS dies set. (BSPT or NPT) | |
| 1″-2″ universal hss die set (BSPT or NPT) | |
| Cutter – MHC2029 : Capacity 1/8″-2″ ( 3mm – 50 mm ) PIPE | |
| Reamer – MHR1006 : | |
| PosItive – locking , 5 flute cone, righthand 1/8″-2″ ( 3mm – 50 mm) | |
| *1 Gallon ’Power Fluid PF—9835’ cutting oil. | |
| Supplied with MF5642 foot switch, MH6511 folding wheel STAND (OPTIONAL) |
