Description
CAPACITY
Pipe: 1/8” -2”(3MM-50MM)
Dieheads : ½”, ¾”, 1”, 1¼”, 1½”, 2”
CODE DESCRIPTION
MEPT-2X ½”-2” BSPT with ‘Case and Support
Arm’ -110V OR 220V-1350w
NPT Optional*

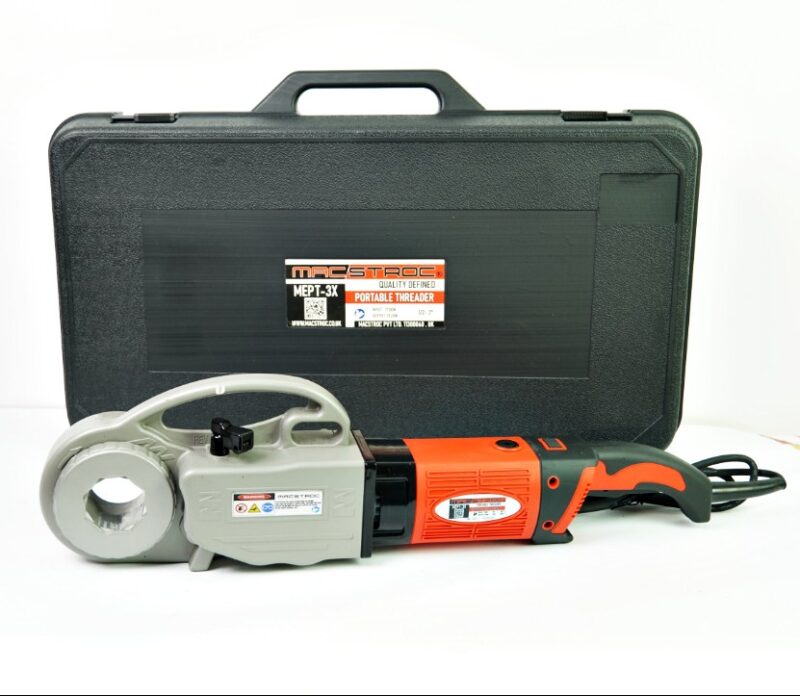

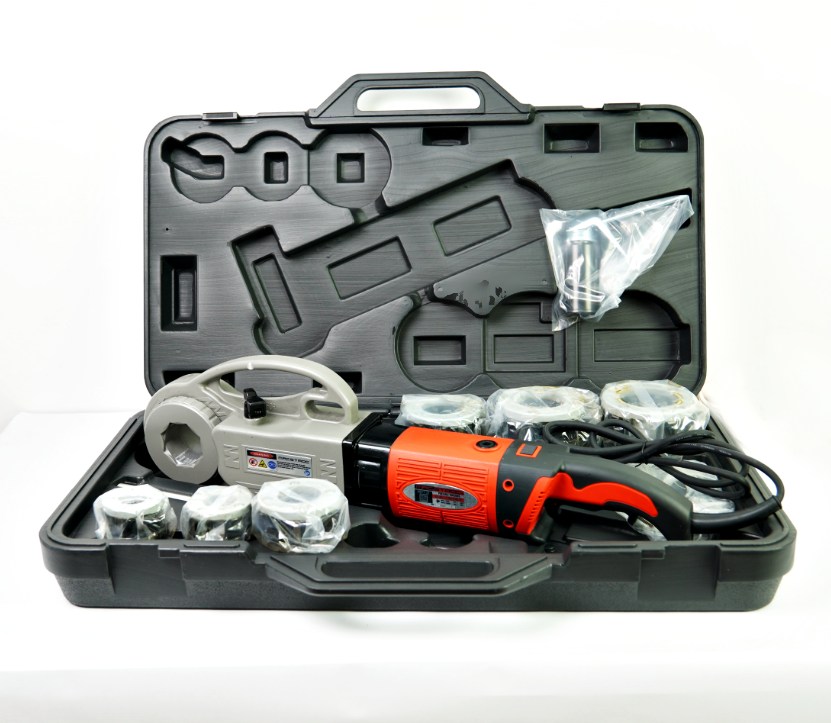

MEPT-3X ½”-2” BSPT with ‘Case and Support
Arm’ -110V OR 220V-1750W
NPT Optional*
MEPT-YK2 Support arm for MEPT models
MOLR18 Oiler (optional)
1/4”-6” Portable tri-leg chain vise
WWW.MACSTROC.CO.UK INFO@MACSTROC.COM
QUALITY DEFINED PIPE TOOLS / THREADING
CODE
BSPT DIES
CODE
NPT DIES SIZE
CODE
DIEHEAD
MBHS12 MNHS12 1/2” MEPT12
MBHS34 MNHS34 3/4” MEPT34
MBHS01 MNHS01 1” MEPT01
MBHS114 MNHS114 1-1/4” MEPT114
MBHS112 MNHS112 1-1/2” MEPT112
MBHS02 MNHS02 2” MEPT02
DIES
SPECIFICATIONS:
Motor: MEPT-2X is 1350W input, 950W output, Universal
110V or 220V, 50/60Hz.
Motor: MEPT-3X is 1750W input, 1020W output, Universal
110V or 220V, 50/60Hz.
Switch: Heavy-duty paddle-type switch with safety lock off
device (automatically locks off when released). Separate mechanical transmission FOR/REV switch. Reverse 3-times faster
than threading.
Gear Head: Spur gear reduction/ring gear drive. All shafts, ball
and needle bearing mounted. Permanently lubricated gear
housing.
Gear Housing: Die cast Aluminum.
Body & Handle: Durable heavy-duty fiberglass reinforced plastic.
Spindle Speed: 28 RPM for threading, 51 RPM reverse (No
load)
Die Heads: ½”, ¾”, 1”, 1¼”, 1½”, 2” (Type *11R)
Includes support arm.
Screw Threads: NPT / BSPT
Dies Material: Alloy standard, (HSS optional)
Die Head Adapter: Used with ½” through 1¼” die heads.
weight: 8 kg (power drive) , 22Kgs complete set
Length: 76 cm
